Simple
to Use - Fast - Inexpensive All tests are run from one end of the cable Tests: Continuity Tests: Integrity (Twisted Pairs) Tests: Bus Type and Termination Power |

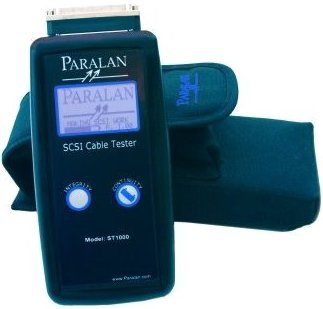

SCSI ケーブル テスタ
ハンドヘルドタイプ
|
|
Simple
to Use - Fast - Inexpensive All tests are run from one end of the cable Tests: Continuity Tests: Integrity (Twisted Pairs) Tests: Bus Type and Termination Power |
|
|
| Continuity Test | A. Tests pin
to pin connection of cable. B. Checks for opens. C. Checks for wire to wire shorts. D. Checks for wire to shield shorts. E. Checks the shield. A shield failure is noted separately, so ribbon cables may be tested. F. Checks for terminations |
|
| Integrity Test: | A. Tests both
wide and narrow cable for correct signal pair/cable pair matching.
B. Tests for correct pair location in cable. C. Checks for terminations. |
|
| SCSI Bus Test | A. Display:
Disconnect the other end from the SCSI bus. B. Display: Term Power Presence. C. Display: Bus Type - LVD, HVD, SE. D. Display: Diffsense Voltage. |
|
| 環境 |
Operating temperature: 0-50°C (32-122F) |
| 電源 |
9V Alkaline Battery |
| 規格 |
CE |
| MTBF |
500,000 Hours |
| SCSIケーブルテスト |
68-pin High-Density With adaptors: 68-pin VHDCI 50-pin High-Density 50-pin Centronic type 50-pin 2 x 25 pin IDC |
| コネクタ |
HD68, 68ピン Wide
|
| 寸法 | 7.25" x 3.63"
x 1.25" (184mm x 92mm x 32mm) Installed Sacrificial Connector adds 0.75" (19mm) to Height Loopback Module: 2.83" x .75" x 1.65" (72 x 19 x 42mm) 10.2 oz (288g) |
