EExtend Single-ended SCSI bus EIsolate Narrow Single-ended SCSI bus segments EEnclosed & Board-Level versions available EMay be used as Narrow (8-bit) LVD/MSE to SE Converter |
Narrow Single-ended SCSI Bus Expander
Single Ended (SE) oX·
|
|
EExtend Single-ended SCSI bus EIsolate Narrow Single-ended SCSI bus segments EEnclosed & Board-Level versions available EMay be used as Narrow (8-bit) LVD/MSE to SE Converter |
| Β« | Relative Humidity: 0 - 95% non-condensing Operating Temperature: 0 - 50C Storage Temperature: –25 - +75C |
| dΉ | Stand-alone
units (MS8): 100 - 250 VAC, 50/60 Hz auto select Board-level units (MS9): 5 V dc }5% |
| ΐS« | UL, CSA, TUV, CE |
| EMI/RFI | FCC Class A, CE |
| RlN^ | MS8: 50-pin centronics-type (Shielded, Alt. 2
- A Cable) MS9: 2 rows of 25 pins (Unshielded, Alt. 2 - A Cable) |
| R~ jP[V | Parallel Transmission Rate: Up to 20 MBytes/sec Ultra SCSI Protocols: ANSI X3T10 SCSI standard |
| dΚ | MS8: 1.5 lb (0,6 kg) Shipping weight, 4 lb (1.8 kg) MS9: 2.5 oz (0,1 kg) Shipping weight, 2 lb (0.9 kg) |
| ‘@ | (MS8) Height: 1.6 in. (41 mm) Width: 4.1 in. (104 mm) Depth: 4.0 in. (106 mm) (MS9) Height: 0.4 in. (10.2 mm) Width: 3.880 in. (98.5 mm) Depth: 4.5 in. (114 mm) |

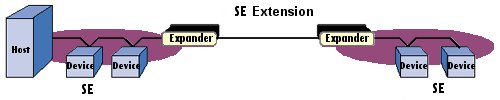

Extending SCSI |
|
|
|
@ |
| MS8 | MS8 | SCSI Bus Expander for Narrow (8-bit), Single-ended
SCSI |
| @ |
|
5-1/4" Half Height Drive Bay Mounting Bracket & Faceplate for MS17 |
| SQxx | @ | SCSI Quiet Cable (specify length) |
