LVD/MSE TO SE SCSI Converter

LVD/MSE ～ Single Ended (SE) バス変換, バス延長


環境 Relative Humidity:0 - 95% non-condensing
Operating Temperature:0 - 50°C
Storage Temperature:–25 - +75°C
電源 Stand-alone units (MS16):
  Voltage:100 - 250 VAC, auto select Frequency:50 - 60 Hz
Board-level units (MM17):
  Voltage:5 V dc ±5%Current:0.8 AmpsAn additional 1 Amp Max if used to power external terminators
安全性 UL, CSA, TUV, CE
EMI/RFI FCC Class A, CE
コネクタ MS16, MS17: SCSI-3 68-pin High-Density female Alt-3 “P” Connector
コミュニケーション Sustained Data Throughput:
 Limited by SE bus to 40 Mbytes/sec (16-bit)
重量 MS16: approx. 2 lb (O,9 kg)
  Shipping weight, approx. 4 lb (1,8 kg)
MS17: 2.5 oz (71 g)
  Shipping weight, approx. 2 lb (1 kg)
寸法 (MS16)
  Height: 1.6 in. (41 mm)
  Width: 4.1 in. (104 mm)
  Depth: 4.5 in. (114 mm)
(MS17)
  Height: 0.4 in. (10.2 mm)
  Width: 3.880 in. (98.5 mm)
  Depth: 4.5 in. (114 mm)

Maximizing Thruput with Mixed Devices

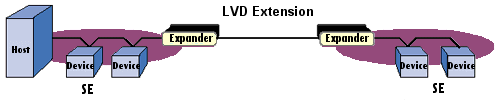

Using MS16 Expanders in a back to back connection

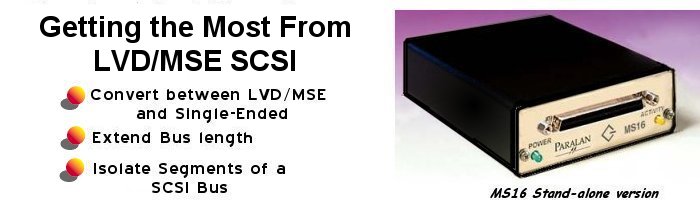

Stand-alone
Board Version
 　
MS16 MS17 SCSI Wide LVD/MSE to SE Expander (16-bit)
　
2811
 5-1/4" Half Height Drive Bay Mounting Bracket & Faceplate for MS17
SQxx 　 SCSI Quiet Cable (specify length)
