LVD TO SE SCSI Converter
LVD ～ Single Ended (SE) バス変換
LVD バス延長
|
|
|
| 環境 | Relative Humidity: 0 - 95% non-condensing Operating Temperature: 0 - 50°C Storage Temperature: –25 to +75°C |

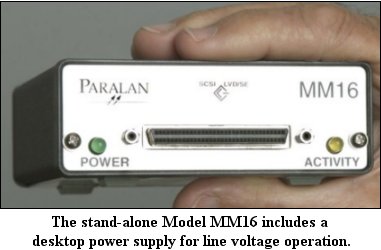

| 電源 | Stand-alone units (MM16): Voltage: 115/220 V ac, auto select Frequency: 50 - 60 Hz Board-level units (MM17): Voltage: 5 V dc ±5% Current: 1.5 A max |
| 安全性 | UL, CSA, TUV, CE |
| EMI/RFI | FCC Class A, CE |
| コネクタ | MM16, MM17: SCSI-3 68-pin High-Density female Alt-3 “P” Connector |
| コミュニケーション | Sustained Data Throughput: Up to 160 MBytes/sec (16-bit) |
| 重量 | MM16 : 0.9kg MM17 : 71g |
| 寸法(MM16) | H 41 x W 104 x D 114 mm Board-Level Version Dimensions: Overall board dimensions 4.00 x 3.88 in. (101,6x98,5 mm) |
 Using a single Multimode Expander |
 Maximizing Thruput with Mixed Devices |
|
|
|
|
| MM16 |
|
SCSI Wide LVD/MSE to LVD/MSE Expander (16-bit) |
|
|
5-1/4" Half Height Drive Bay Mounting Bracket & Faceplate for MH17 | |
| SQxx | SCSI Quiet Cable (specify length) |
