Ultra320 TO HVD SCSI Converter

LVD/MSE 〜 HDV バス変換

SE または LVD バス延長


環境 Relative Humidity : 0 - 95%
non-condensing : 0 - 50度
Storage Temperature : -25 - 75度
電源 スタンドアロン(MH32)
 Voltage: 100 - 260 VAC, auto select

Frequency: 50 - 60 Hz
ボードレベル(MH33)
 Voltage:5 V dc ±5%

Current: 1.5 A max
安全性 UL, CSA, TUV, CE
EMI/RFI FCC Class A, CE
コネクタ MH32, MH33 : SCSI-3 68 pin
Hidensity Alt-3 "P" Connecter
コミュニケーション Limited only by the performance level of the devices
connected to the MH32A or MH33A.
All devices will function to their full designed capabilities.
重量 MH32 : 0.34kg
MK33 : 71g
寸法 MH32
H 41 x W 104 x D 114 mm
MH33
Overall board dimensions 4.00 x 3.88 in.
(101.6 x 98.5 mm)

Using Ultra320 Devices in an Existing HVD System

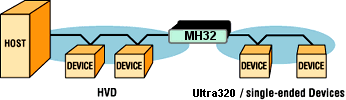

Using HVD (High Voltage Differential) Devices in an Ultra320 System

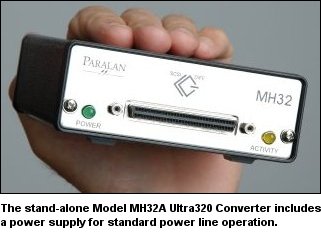

Stand-alone
Board Version

MH32
MH33
SCSI Wide Ultra320 to HVD Converter (16-bit)

2811
5-1/4" Half Height Drive Bay Mounting Bracket & Faceplate for MH17
SQxx   SCSI Quiet Cable (specify length)
