Paralan

SCSI スイッチラックマウント，ディスクトップ

MODE SS1

ラックマウント / ディスクトップ
	・Switch between Primary and Backup devices during system maintenance ・Access a single device or group of devices from more than one host ・Switch between two devices or groups of devices with the same SCSI address ・Access for more than the 15 SCSI devices normally available to a Wide SCSI Port ・Does not consume a SCSI address

SCSIインターフェース	Order LVD/MSE, HVD or SE for each port LVD supports Ultra 160 HVD or SE supports Ultra
ケーブル長	LVD - up to 160Mbytes/sec 25 m (82 ft) point-to-point 12 m (40 ft) with more than 2 IDs SE - up to 40 Mbytes/sec 6 m (20 ft) SLOW SCSI 3 m (10 ft) FAST SCSI 1.5 m (5 ft) Ultra SCSI HVD - up to 40 Mbytes/sec 25 m (82 ft)
シリアルインターフェース	Mode: 8 bits, 1 stop bit, no parity Baud Rate: 9600 baud Max Cable Length: 50 feet
環境	The Paralan SCSI Switch is designed to operate in an office environment with limited capacity for heating and air conditioning.
温度	Operating: 0 to +50 C Storage: -25 to +75C
湿度	Operating: 5 to 90% RH Storage: 5 to 95% non-condensing
材質	All Metal
コネクタ	Wide SCSI: 68-pin High-Density, female Alt 3, P Connector Narrow SCSI: 50-pin centronics type, female Alt 2, A connector
電源	Maximum Power Requirements: 40 Watts Line Voltage: 90 to 264 VAC, 47 to 63 Hz Auto-Ranging
安全規格	UL, CSA, CE
EMI/RFI	FCC Class B, CE

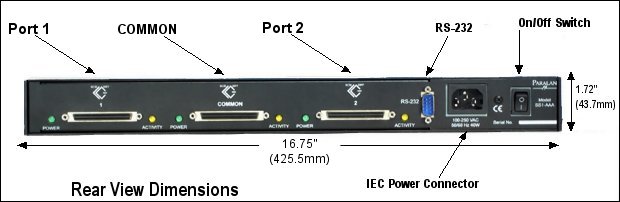

寸法	16.75 x 10.0 x 1.72 (425.5 x 254 x 43.7 mm) Vertical Rack Space 1U (1.75 inches, 44.5 mm)
重量	11 lbs (5 kg) 22 lbs (10 kg) shipping

ご注文時品番

Standard Configurations:

SCSI 2 X 1 Switch For Tabletop or Rack

Model No.: SS1		X	X	X	T or R
Select one letter from each column:		PORT 1	COM	PORT 2	\|
					\|
High Voltage Differential (HVD) Wide port		H	H	H	\|
Multimode LVD (LVD/MSE) Wide port		L	L	L	\|
Single-ended Wide (68-pin HD connector)		S	S	S	\|
Single-ended Narrow (50-pin centronics type connector)		N*	N*	N*	\|
					\|
Tabletop Enclosure with Rubber Feet	-------------	--------------	---------------	---------------	T
Adapters for Rack Mounting the Switch - 1 Pair	-------------	--------------	---------------	---------------	R

*N version available only as SS1-NNN-T or R Custom switch inquiries for OEM quantities are welcome
.

Example 1: Model No. SS1-LHL-T - Tabletop Model SS1 with LVD/MSE at both switched ports and HVD at the Common port

Example 2: Model No. SS1-SLH-R - Rack Mount Model SS1 with LVD/MSE at the Common port, SE Wide at Port 1 and HVD at Port 2

Notes:

The SS1 comes assembled and wired with the selected Ports installed.
A six foot (1.84 m) North American grounded cordset (NEMA 5-15, rated 250 VAC) is included in shipments to destinations in North America and Japan. Other destinations receive no cordset.
