SCSI Expander BOX

MODE EB1



19" ラックマウント 1U サイズ


拡張機能

下記の機能をセットできます。

  • MH17 Wide LVD/MSE to HVD Converter
  • MS17 Wide LVD/MSE to SE Converter
  • MM17 Wide LVD/MSE to LVD/MSE Expander

（別注）

  • SIR-D17C Wide HVD to HVD RegeneratoR
  • SD11D Narrow SE to HVD Converter
環境 温度
  Operating: 0 to +50 C
  Storage: -25 to +75C
湿度
  Operating: 5 to 90% RH
  Storage: 5 to 95% non-condensing
電源 Maximum Power Requirements: 40 Watts Line Voltage: 90 to 264 VAC, 47/63 Hz Auto-Ranging
材質
 All Metal
安全性 UL, CSA, TUV, CE
EMI/RFI FCC Class A, CE
コネクタ Wide: 68-pin High-Density female Alt 3, "P" Connector Narrow: 50-pin High-Density female Alt 1, "A" Connector
寸法 16.73 x 10.0 x 1.72 (425 x 254 x 43.7 mm) Vertical Rack Space 1U (1.75 inches, 44.5 mm)
重量
 11 lbs (5 kg) 18 lbs (8.2 kg) shipping

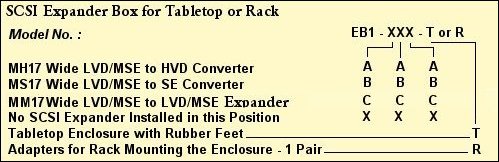

ご注文時品番



Example 1:

Rackmount Enclosure with MH17 Wide LVD/MSE to HVD Converter in all three positions
Model No. EB1-AAA-R
Example 2:

Tabletop Enclosure with MH17 Wide LVD/MSE to HVD Converter in position 1, no expander in position 2, and MM17 Wide LVD/MSE to LVD/MSE Expander in position 3
Model No. EB1-AXC-T
Notes:

1. The EB1 comes assembled and wired with the selected boards installed.
2. A six foot North American grounded cordset (NEMA 5-15) is included in shipments to destinations in North America and Japan. Other destinations receive no cordset.
