PC ケーブル & アダプタ

PC VIDEO CABLES, VIDEO ADAPTERS

VGA & USB EXTENSION, VGA & USB INTERFACE
EXTEND 1900X1200 VGA TO 250 FEET WITH NO LOSS OF SIGNAL



 USBVEXT-3/6/10

USB & VGA Extension Cable
Male to Female 15 Pin HD,
A (Male) to A (Female)

USBVEXT-3/6/10/15-MM

USB & VGA Extension Cable
Male to Male 15 HD,
USB A (Male) to B (Male)

USB-PS2

Connect USB PS/2 to
NTI universal switches.

VEXT-3/6/10/15/25/35/50/75/100

VGA Cable
Molded, Multicoax
1900 x 1200
Extension through 250 feet

VEXT-3/6/10/15/25/35/50/75/100-MM

VGA Extension Cable
Molded, Multicoax
1900 x 1200
Extension through 250 feet

VKMEXT-3/6/10/15/25-MM

PS/2 Keyboard, Mouse & Monitor
Under One Jacket
Video 1900x1200

VKMEXT-3/6/10/15/25

PS/2 Keyboard, Mouse & Monitor
Under One Jacket
Video 1900x1200


PC KEYBOARD AND MOUSE CABLES

EXTEND PC KEYBOARDS AND MICE TO 500 FEET WITH NO LOSS OF SIGNAL


 VVKINT-3/6/10/15/25/50-MM
VVKEXT-75/100-MM

PS/2 Keyboard and Mouse
"Y" Cable.

VVKINT-3/6/10/15/25
VVKEXT-35/50/75/100

PS/2 Keyboard and Mouse
Extension "Y" Cable.

VINT-5B-6

VGA Adapter.
PC to BNC

MMEXT-25/35/50/75/100

Serial Mouse


CUSTOM KEYBOARD MOUSE VGA CABLE & COAX CABLE

EXTEND 1600X1200 VGA TO 250 FEET WITH NO LOSS OF SIGNAL
VEXT-RG11-xx
VGA Extension through 500 feet
Three RG11 Coax Plus Double RG50 Coax

VKEXT-xx
PS/2 Keyboard.
Extension through 500 feet.


HIGH RESOLUTION VIDEO CABLE TO 250 FEET

COMPUTER MONITOR CABLE EXTENDS HIGH RESOLUTION

Also known as: VGA cable, VGA extension, Computer Cable, Monitor Cables, VGA video cable, All in one VGA &
USB extension cable, VGA & USB interface cable, VGA cable, triple shielded monitor cable, all in one extension cable for keyboard monitor mouse.

NTI VGA cable for video monitor extension. Video cable extends your display possibilities with guaranteed 1900x1200
resolution through 250 feet. The superior construction of our triple shielded VGA monitor cable delivers crisp and
clear high resolution video without booster boxes. Gold plated copper contact pins maximize conductivity with no
loss of data. To help customers find the perfect solution to meet their application and budget needs,
NTI offers three varieties of video cables: Multi-Minicoax Cable, Multi-RG59 Cable, and Discreet-Coax Cable.

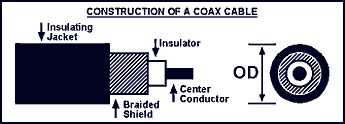

Coax Type Outside Diameter
(OD in inches)
Mini 0.1
RG59 0.25
RG11 0.4

Multi-Minicoax Coax Cables are made with 3 mini coax cables and 9 wires molded under one jacket. Available as fully molded cables from 3 through 100 feet. Supports 1900x1200 resolution through 50 feet.
Multi-RG59 Cables are made with 3 RG59 coax and 4 pairs under one jacket with hand assembled ends. Custom made up to 250 feet for Standard VGA*, supports 1900x1200 resolution through 125 feet.

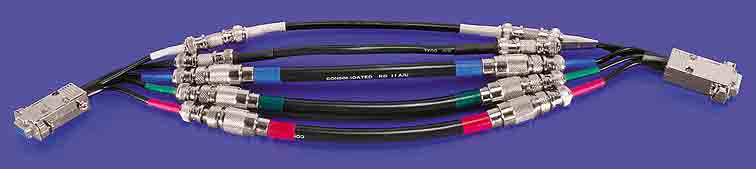

Discreet-Coax Cables are made with three RG11 coax & 2 RG59 coax. Custom made with ends that plug in to the large coaxes & convert the discreet coax cables to standard VGA connectors. Supports Standard VGA* to 500 feet, & 1900x1200 VGA to 250 feet.
*Standard VGA video is 640x350, 640x400 or 640x480 resolution.
