フラット CAT5e ケーブル & パッチ コード

Ideal for network applications where space is tight & Ethernet and Analog Video over Cat5e.
International TIA/EIA 568 Patch Cables. Category 5e Flat Cables will operate up to 100 meters

Also known as: Cat5e Flat Cable, Cat 5 Flat Cable, Cat 5 Patch Cord, CAT5E Cable, Patch Cords, Category 5 cable,
Category 5, TIA/EIA 568 Patch Cable, Stranded Conductor Patch Cords, UTP Cable,
10BaseT, 10Base-T, 100Base T, 100 Base-T, 100 Base T, Cat5 UTP wiring.


Features & Applications

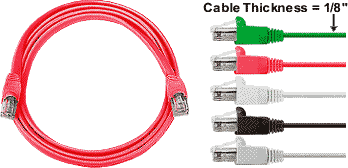

Flat Cat5e Cables are perfect for difficult network installations where space is tight.

Flat Cat 5e Cable Patch Cord is used in network applications such as 10Base-T, 100Base-T, 1000Base-T, Ethernet technology to 100 meters (328 feet) and has been designed specifically for Gigabit Ethernet applications (Gigabit over copper). These cables perform high-data transfer rates and deliver improved performance over standard Cat 5 cables.

Our Flat Cat 5e Cables are composed of 4 pairs 24 AWG stranded conductors with PVC jackets. Conductors are wired to gold-plated RJ45 plugs in accordance with the TIA/EIA 568A standard (Telephone Industry Associatio/Electronics Industry Association). Available in five colors. Boots match cable color. Custom modular cable assemblies are available
Used to connect your network card to a 10/100/1000Base-T hub or switch.
Category 5e UTP cable. 24 AWG, gold plated 8x8 (RJ45) plugs.
Patch cables & boots are the same color; boots are snagless.
Patch Cables have stranded copper conductors for flexibility - great for frequent changes that occur at the wall outlet or patch panel.
OTHER CAT5 PERIPHERAL PRODUCTS:
CAT5 KVM Extender
The ST-C5KVM Universal CAT5 KVM Extender allows one keyboard, monitor and mouse to be placed up to 1000 feet from the computer or VPI KVM switch using Cat 5e unshielded twisted-pair (UTP) cable.


Category 5 Flat Patch Cables Available Sizes & Colors
Color 2 Feet 3 Feet 5 Feet 7 Feet 10 Feet
Green

CAT5E-FLT-2-GREEN

CAT5E-FLT-3-GREEN

CAT5E-FLT-5-GREEN

CAT5E-FLT-7-GREEN

CAT5E-FLT-10-GREEN
Red

CAT5E-FLT-2-RED

CAT5E-FLT-3-RED

CAT5E-FLT-5-RED

CAT5E-FLT-7-RED

CAT5E-FLT-10-RED
White

NA

CAT5E-FLT-3-WHITE

NA

CAT5E-FLT-7-WHITE

CAT5E-FLT-10-WHITE
Black

CAT5E-FLT-2-BLACK

NA

CAT5E-FLT-5-BLACK

CAT5E-FLT-7-BLACK

NA
Gray

CAT5E-FLT-2-GRAY

CAT5E-FLT-3-GRAY

CAT5E-FLT-5-GRAY

NA

CAT5E-FLT-10-GRAY


Color 14 Feet 25 Feet 50 Feet 100 Feet
Green

CAT5E-FLT-14-GREEN

CAT5E-FLT-25-GREEN

CAT5E-FLT-50-GREEN

CAT5E-FLT-100-GREEN
Red

CAT5E-FLT-14-RED

CAT5E-FLT-25-RED

CAT5E-FLT-50-RED

CAT5E-FLT-100-RED
White

CAT5E-FLT-14-WHITE

CAT5E-FLT-25-WHITE

CAT5E-FLT-50-WHITE

CAT5E-FLT-100-WHITE
Black

NA

NA

CAT5E-FLT-50-BLACK

CAT5E-FLT-100-BLACK
Gray

CAT5E-FLT-14-GRAY

CAT5E-FLT-25-GRAY

CAT5E-FLT-50-GRAY

CAT5E-FLT-100-GRAY
