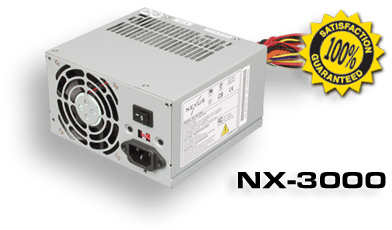

NX-3000 Real Silent Power Supply 300Watt



This power supply has been designed to beat the best silent power supplies in the market today. The Nexus NX-3000 was tested in a Anechoic chamber using Brüel & Kjær testing equipment and compared with the leading existing quiet power supplies and came out a winner with an average of 5 dB(A) in favor of the NX-3000


ƒpƒbƒP[ƒW

“Á’¥
Real silent power supply, only 18.6 dB(A) in idle mode
19.8 dB(A) at an average pc power consumption
High efficiency, Excellent air flow
Output over voltage protection
Short circuit protection on all output
Reset Table power shut down
Approved by: TÜV, CSA, UL, NEMKO, FCC, CE
Internal 12 VDE fan
100% burn-in under high ambient temperature (50oC)
Vacuum-impregnated transformer
MTBF: 100K hours at 25oC
100% Hi-pot tested
Line input fuse protection
Žd—l
Remote ON/OFF Control: The power supply shall accept a logic open collector level which will disable / enable all out put voltage (excluding +5V standby)
Temperature range:
operating 0oC`50oC
storage -20oC`+65oC
Temperature coefficient: 0.01% / oC
Transient response: output voltage recovers in less than 1ms max. following a 25% load change
Dielectric withstand: input / output 1800VAC for 1 second, input to frame ground 1800 for 1 second
Humidity: 5`95% RH
Efficiency: 65% min. 70% typical, at full load
Power good signal: turn-on delay 100ms to 500ms
Overload protection: 150% max.
Inrush current: 60A cold, 80A warm at 264 VAC
Over voltage protection:
+5V : 6.5V(max.)
+3.3V : 4.6V(max.)
+12V : 15.5V(max.)
Output voltage hold-up time:
16.6 mS minimum : at 115V / 60 Hz.
12.0 mS minimum : at 230V / 50 Hz.
o—Í“dŒ¹




Minimum

Normal Maximum

Load REG.

Line REG.

Ripple & Noise



Load

Load load
+3,3V 0.3A 14.0A 15/28A }5% }1% 50mV P-P
+5V 0.5A 8.75A 30/21.5A }5% }1% 50mV P-P
+12V 0.0A 4.2A 15A }5% }1% 120mV P-P
-12V 0.0A 0.4A 0.8A }10% }2% 120mV P-P
-5V 0.0A 0.15A 0.3A }10% }2% 100mV P-P
+5Vsb 0.0A 1.0A 2.0A }5% }1% 50mV P-P






3.3V & +5V total output not exceed 200Watt



¡–@



ƒ‰ƒxƒ‹

ƒeƒXƒgƒŒƒ|[ƒg
Acoustic noise test report
Air flow test report

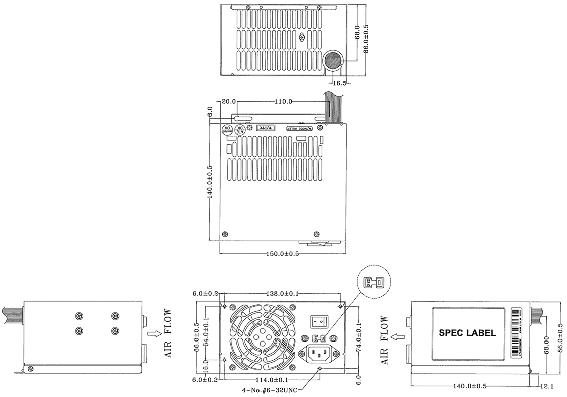

Technical drawings
Approval certificates
