KCZ-2700 CPUファン

high performance processor cooler for AMD

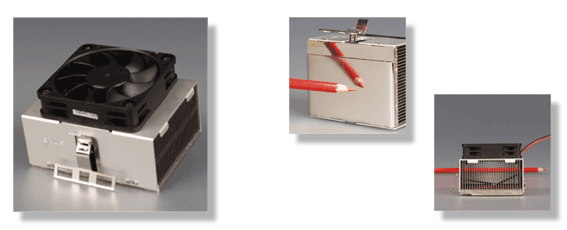

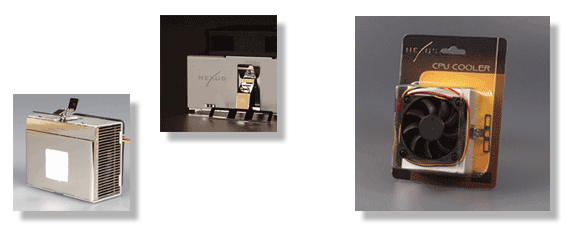

The Nexus KCZ-2700; a high performance processor cooler for up to AMD 3000+.

The KCZ-2700 has an extreme cooling capacity combined with very low noise operation. This processor cooler has a pure copper, nickel plated, base plate with patented folded fins of 99.95% pure aluminium.

The cooler is fitted with a three window mounting clip with a thumb latch for an easy and secure installation.

Dow Corning 340 thermal grease is used for an excellent heat dissipation between the processor die and the base plate. A thin film of thermal grease is pre-applied on the base plate of the KCZ-2700.


特徴
Pure copper base plate, nickel plated for a perfect finish
Patented bonded fins of 99.95% pure Aluminium
Three window mounting clip with thumb latch
Pre-applied Dow Corning 340 thermal grease
Perfect vertical fins for excellent air flow
Weight 375 gram
Low speed:25.2dB(A)/Medium speed:28.8dB(A)
Available in bulk and in retail packaging
テストレポート

Testing data:
ITEM DESCRIPTION
Heat Sink Model KCZ-2700 MS KCZ-2700 LS
Base plate Full copper, nickel plated
Fins 99,95% pure Aluminium, patented bonded fin
Thermal Compound Dow Corning 340
Heat Sink Size, Weight 62.5mm x 80mm x 35mm, 375 gram

Fan Model Y.S.NFD1260155B-1A Y.S.NFD1260153B-1A
Speed Medium speed, 3900RPM Low speed, 3200 RPM
Noise Level 28.8 dB(A) 25.2 dB(A)
Fan Dimensions 60mm x 60mm x 15mm
Rated Voltage DC 12 V
Airflow 21 CFM 17.1 CFM

CPU Series AMD
  XP 3000+ XP 2800+
