KW-1314
KW-1314
| 仕様 |

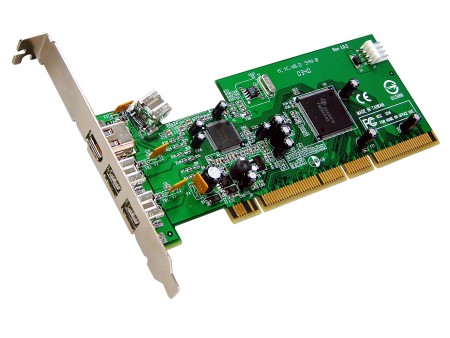

| 4-Port (3Ext.+1Int.) IEEE1394b PCI Card |
| Chip: TI |
| Compatibility with Current 1394a
/1394b Products 1394a port : data transfer rate up to 100/200/400Mbps 1394b port : data transfer rate up to 800Mbps |
| IEEE Standard for a High Performance Serial Bus (IEEE Std 1394-1995)(IEEE Std 1394a-2000) |
| 33-MHz/64-bit and 33-MHz/32-bit selectable PCI interface |
| PCI Local Bus Specification (Revision 2.2) |
| PCI interfaces compatible with
3.3-V and 5-V PCI signaling |
| Hot Swapping and Plug-n-Play |
| Supports Windowsｮ
98SE/ME/2000/XP or later Supports Mac OS 9.x or later |
| 対応OS |
| Windows ・PC with 128MB of RAM and 450MHz or faster processor ・One available 64-bit/33MHz or 32-bit/33MHz PCI 2.2 slot ・Windowsｮ 98SE/ME/2000/XP or later(*1) FireWire 400 is supported by Microsoft native drivers for Windows 98SE/Me/2000/XP. Use enclosed drivers for FireWire 800 supports. |
| Mac ・Power Mac G3/G4/G5 series with Mac OS 9.x or later(*2) (supports FireWire 400 only) ・Power Mac G3/G4/G5 series with Mac OS 10.2.5 or later(*2) (supports FireWire 400/800) ・One available 64-bit/33MHz or 32-bit/33MHz PCI 2.2 slot FireWire 400 supports for Mac OS 9.x or higher, and FireWire 800 supports for Mac OS 10.2.5 or higher. |
| パッケー
ジ |
| FireWire/1394b PCI card |
| 9-pin to 9-pin FireWire/1394b cable |
| Driver diskette or CD |
| User
manual |
| TEL 0480-93-4590 FAX 0480-93-2021 |
