PMA150
パネルマウント 1.5" アセンブル
|
|
|
| 特徴 |
| The PMA150 1.5-Inch Panel Mount Trackball is designed
for custom installation in consoles, tabletops, desktops, kiosks, racks,
and other O.E.M. products. This compact product is available with interfaces
for most computers and workstations and is built to rugged design standards
that are the trademark of Evergreen Systems. Note: Standard color for all panel mount trackballs is black cover, black ball, and white switches. We can provide custom colors for each item upon request. Please contact us with your requirements. Please call the factory for 1.5" Panel Mount Trackball Mechanical Drawing Each panel mount trackball assembly includes a 6-8 foot cable (serial, PS/2, or USB depending on configuration) and one foot of wire for connection to switches. |
| 仕様 |
| Emulates most popular mice - can use existing mouse driver

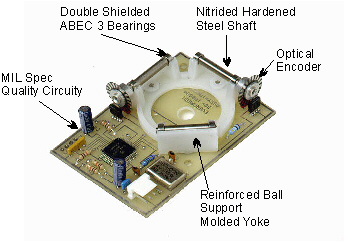

and mouse software. Interfaces for most workstations and computers. Three Buttons are provided to provide Left, Middle, and Right mouse button functions. These buttons can be located above or below the ball. Diamond Hard Nitrited Steel Shafts with Precision Ball Bearings provide for rugged, smooth, long lasting operation. Optical Encoders provide fast, high resolution, reliable positioning data. 1.5 Inch Diameter Hard Phenolic Resin Ball for smooth, durable operation and precise cursor positioning. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly. Gold-Plated Steel Spring-Contact Switches for high reliability and excellent tactile/audible feedback. Teflon Ball Shields are available for dirt and water protection in harsh environments. Manufactured in the USA. |
| 環境 |
| TEMPERATURE: 0 to 50 C. Operational, -40 to +85-C
Storage HUMIDITY: 95% RH non-condensing operational SHOCK: 20 G any axis VIBRATION: 5 G 10 - 2000 Hz. ALTITUDE: -1000 to +50,000+ Feet Operational R. F.: FCC Part 15 Subpart 3 requires this product to be tested with a host. Evergreen manufactures units meeting MIL-STD-461C Part 2-RE-02. MTBF: 25,000 Hours Industrial 50,000 Hours Office Benign Per MIL-HDBK-2l7E |
| インターフェース |
| PMA150-S9P (Serial 9-Pin) PMA150-S25P (Serial 25-Pin) PMA150-USB PMA150-SGI PMA150-DEC PMA150-SUN |
| Button Assemblies for PM150 Trackballs |
| A 4-Button assembly, 1/2 inch buttons B 2-Button assembly, wide spacing, 1/2 inch buttons C 2-Button assembly, narrow Spacing, 1/2 inch buttons D 3-Button assembly, 1/2 inch assembly E 1-Button assembly, 3/4 inch button |
