G81 シリーズ

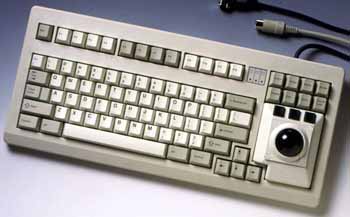

トラックボール付キーボード



特徴
This product is an industrial quality keyboard incorporating our 1.5" trackball pointing device. The keyboard has independent mechanical keys and is PC XT, AT, and PS/2 compliant. The high resolution, precision trackball replaces the numeric pad of the keyboard.


キーボード
The keyboard is a separately manufactured, 16" wide rack mountable keyboard, featuring full travel individual key switches and is IBM 101 key compatible
特徴
Fits into 19 inch rack (less than 16 inches wide)
101 keys for PC, XT, AT, and PS/2 systems as well as IBM terminals
Switch selection of PC, XT AT, and PS/2 modes. LED's indicate the mode selected.
Superior keyswitch contacts help eliminate input errors.
High reliability:
 MCBF 1 x 10^6 operations
 MTBF = 80,000 hours
 MCBF (each keymodule> 50 x 10^6 operations)
Ergonomic. low profile design. Height of third key row is 1.18" (flat keyboard position Angle of inclination is 6.2 Degrees.
Rugged construction
Full-travel (4mm) key switches
"Deep Dish" for home keys F and J with dimple on key 5 for touch typing.
Matte finished, 2-shot molded keycaps are wear resistant and easy to clean. Keycap colors are: beige/grey (code U9), white/grey (code L9).
Materials conform to UL 94
Synchronous data format
Full N-key rollover.
Autorepeat; delay time and rate are programmable from the system (AT mode only)
仕様

Power Supply +5VDC +-5%, 180 mA typical
Interface Bi-directional. synchronous serial. The keyboard communicates with the system via clock and data lines.
Data Format IBM compatible. bi-directional. AT, PS/2 modes: data and clock high in idle state. PC mode: data low and clock high in idle state.
Output Drivers Open collector TTL.
Data Buffer All codes are buffered before transmission.
Rollover Full N-key rollover.
Automatic Repeat All keys have Autorepeat function. Delay time and repeat sequence can be modified from system (fixed at 10Hz, after 500ms delay for PC mode)
Reset Keyboard automatically resets at power on. Reset time is 150 msec to 2 seconds.
Self-Diagnostic Test After power-on or upon system request, the keyboard carries out a self-diagnostic test. State of operation indicated by LED's on NUM LOCK, CAPS LOCK, and SCROLL LOCK. Pass = transmitted code AA (Hex). Failure = any code other than AA.

The keyboard is compatible with PC XT, AT, and PS/2 systems. The operation mode is selected by a slide switch located on the underside of the keyboard. Mode selection must be made before operation.

Approvals/Regulations
Radio Frequency Interference..FCC Part IS, Subpart J. Class B. Post-Vfg. 1046/1984 (VDE 087l. Class B).
Electrostatic Discharge: IEC801-2: 15KV


トラックボール
A 1.5" panel mount trackball enclosed in a housing designed to replace the numerical pad has been developed with all the features of the standard industrial/military trackballs Evergreen is noted for. Switches can be placed either vertically or horizontally on the trackball housing.
特徴
Full optical encoders
Ball Bearings supporting hardened nitrided steel shafts.
1.5 inch ball.
400 counts/rev of the ball standard, permitting one pixel resolution.
Rate sensitive Dynamic Resolution for fast cursor movement.
PS/2 or Serial versions available. Serial version is Microsoft 2-button or Logitech 3-button compatible (user selectable via configuration switch) and can use existing mouse driver.
Serial BAUD rates can be factory configured for 1200, 2400, 4800, or 9600 BAUD.
Ball retainer bezel is removable for cleaning the internal rollers and to provide access to the serial configuration switch
The keyboard/trackball assembly is compatible with all systems that use an IBM compatible keyboard and either a serial mouse or a PS/2 mouse. The trackball is independently compatible with other systems such as SUN, Silicon Graphics, and DEC

The keyboard dimensions are: 7.3" wide x 16.0" long x 1.4" high (exclusive of the trackball assembly). The keyboard/trackball assembly can be mounted to a standard 19" rack mount shelf (or "bull nose") using 10-32 screws. A cable exit can be provided in the bottom for secure installations.
環境
Temperature:0 to 50 C. Operational. -40 to +8.5 C. Storage
Humidity:95% RH non-condensing operational
Shock:20G any axis
Vibration:5G 10-2000Hz
Altitude:-1000 to +50,000+ Feet Operational
R.F.:FCC Part 15 Subpart 3 requires this product to be tested with a host. Evergreen manufactures units meeting MIL-STD461C Part 2-RE-02
MTBF:25,000 Hours Industrial, 50,000 Hours Office Benign Per MIL-HDBK-217E
インターフェース テーブルトップ
100691-1-1V - G81 Keyboard, Serial 9-Pin (DB9S), Vertical Buttons
100691-1-2V - G81 Keyboard, PS/2 (6-Pin MiniDIN), Vertical Buttons
100691-1-3V    (USB)
100691-1-1H - G81 Keyboard, Serial 9-Pin (DB9S), Horizontal Buttons
100691-1-2H - G81 Keyboard, PS/2 (6-Pin MiniDIN), Horizontal Buttons
100691-1-3H    (USB)

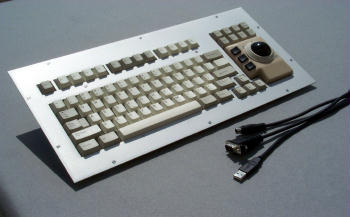

インターフェース パネルマウント
100758-1V - G81 Panel Mount Keyboard, Serial 9-Pin(DB9S), Vertical Buttons
100758-2V - G81 Panel Mount Keyboard, PS/2 (6-Pin MiniDIN), Vertical Buttons
100758-3V    (USB)
100758-1H - G81 Panel Mount Keyboard, Serial 9-Pin(DB9S), Horizontal Buttons
100758-2H - G81 Panel Mount Keyboard, PS/2 (6-Pin MiniDIN), Horizontal Buttons
100758-3H    (USB)
