G101 シリーズ
トラックボール付キーボード
|
|
| 特徴 |

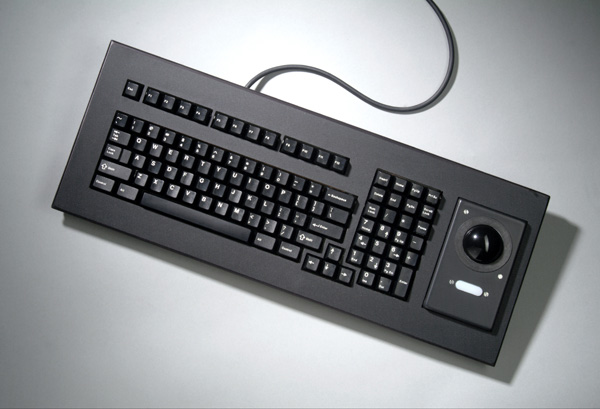

| This product is an industrial quality keyboard incorporating
our 2.0" trackball pointing device. The keyboard has independent mechanical
keys and is PC, XT, AT, and PS/2 compliant |
| キーボード |
||||||||||||||||
| The keyboard is a separately manufactured, 8" x 20"
keyboard, featuring full travel individual key switches and is IBM 101 key
compatible. |
||||||||||||||||
| 特徴 |
||||||||||||||||
| 101 keys for PC, XT, AT, and PS/2 systems as well
as IBM terminals Superior keyswitch contacts help eliminate input errors. High reliability: MCBF 1 x 10^6 operations MTBF = 80,000 hours MCBF (each keymodule> 50 x 10^6 operations) Rugged construction Full-travel (4mm) key switches "Deep Dish" for home keys F and J with dimple on key 5 for touch typing. Matte finished, 2-shot molded keycaps are wear resistant and easy to clean. Keycap colors are: beige/grey (code U9), white/grey (code L9). Materials conform to UL 94 Synchronous data format Full N-key rollover. Autorepeat; delay time and rate are programmable from the system (AT mode only). |
||||||||||||||||
| 仕様 |
||||||||||||||||
|
The keyboard is compatible with PC. XT AT, and PS/2 systems
|
||||||||||||||||
| Approvals/Regulations |
||||||||||||||||
| Radio Frequency Interference..FCC Part IS, Subpart
J. Class B. Post-Vfg. 1046/1984 (VDE 087l. Class B). Electrostatic Discharge: IEC801-2: 15KV |
| トラックボール |
||||||||||||||||||||
| A 2.0" panel mount trackball enclosed in a housing designed
to compliment the keyboard has been developed with all the features of the
standard industrial/military trackballs Evergreen is noted for |
||||||||||||||||||||
| 特徴 | ||||||||||||||||||||
| Full optical encoders Ball Bearings supporting hardened nitrided steel shafts. 2.0 inch ball. 400 counts/rev of the ball standard, permitting one pixel resolution. Rate sensitive Dynamic Resolution for fast cursor movement. PS/2 or Serial versions available. Serial version is Microsoft 2-button or Logitech 3-button compatible and can use existing mouse driver. Serial BAUD rates can be factory configured for 1200, 2400, 4800, or 9600 BAUD. The keyboard/trackball assembly is compatible with all systems that use an IBM compatible keyboard and either a serial mouse or a PS/2 mouse. The trackball is independently compatible with other systems such as SUN, Silicon Graphics, and DEC |
||||||||||||||||||||
| 環境 |
||||||||||||||||||||
| Temperature:0 to 50 C. Operational. -40 to +8.5 C.
Storage Humidity:95% RH non-condensing operational Shock:20G any axis Vibration:5G 10-2000Hz Altitude:-1000 to +50,000+ Feet Operational RF/ESD:FCC Part 15 Subpart 3 requires this product to be tested with a host. Evergreen manufactures units meeting MIL-STD461C Part 2-RE-02 (Total assembly compliant with EU Directive 89/336/EEC (Bulletin EU970601)) mtbf:25,000 Hours Industrial, 50,000 Hours Office Benign Per MIL-HDBK-217E |
||||||||||||||||||||
| インターフェース テーブルトップ |
||||||||||||||||||||
| 100860-1 - G101 Keyboard with 2" trackball, Serial
9-Pin(DB9S) 100860-2 - G101 Keyboard with 2" trackball, PS/2 (6-Pin MiniDIN) 100860-4 - G101 Keyboard with 2" trackball, USB Trackball interface |
||||||||||||||||||||
| インターフェース NEMA 4 & 4x Waterproof
& Panel Mount |
||||||||||||||||||||
| 100877-1x - G101 panel mount keyboard with 2" trackball,
serial 9-Pin (DB9S) (x = (L)ogitech or (M)icrosoft mouse emulation) 100877-2 - G101 panel mount keyboard with 2" trackball, PS/2 interface 100877-3 - G101 panel mount keyboard with 2" trackball, SUN interface |
||||||||||||||||||||
| Keyboard Inserts Offered |
||||||||||||||||||||
|
| TEL 0480-93-4590 FAX 0480-93-2021 |
