DTXX
ディスクトップ 2" トラックボール
|
|
| 特徴 |
| The DTXX series trackballs are direct replacements for
Silicon Graphics, SUN Microsystems, Digital Equipment Corp., Hewlett Packard
(including HP/HIL), PC Serial (9-Pin or 25-Pin), and PS/2 "Mice". They are
designed to provide the user with a rugged, industrial quality pointing device
with features to provide quick, precise cursor movement, and convenient "dragging"
operations. The DTXX trackball has configuration switches for right/left handed operation, and (on serial interface units) selection of emulation mode (Microsoft 2-button, Logitech 3-button, plus many more), BAUD rate, and Dynamic Resolution. These configuration switches are user accessible through a window on the bottom of the case. Physical Size: L= 6.0", W= 3.5", H= 1.7" Weight: 0.8 lbs |
| 仕様 |
| Available as a Tempest unit. Emulates most popular mice - Uses existing mouse driver and mouse software Interfaces for most workstations and computers. Four Buttons located at the top of the trackball provide Left, Middle, and Right mouse button functions, plus a "Drag Lock" button to facilitate dragging operations. Click here (DTXX Switch Configuration) for a detailed explanation of the button operation, button configuration, and serial interface configurations available on the DTXX units. All Metal Mechanicals and Diamond Hard Nitrited Steel Shafts with Precision Ball Bearings provide for rugged, smooth, long lasting operation. Optical Encoders provide fast, high resolution, reliable positioning data. 2 Inch Diameter Hard Phenolic Resin Ball for smooth, durable operation and precise cursor positioning. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly. Gold-Plated Steel Spring-Contact Switches for high reliability and excellent tactile/audible feedback. Teflon Ball Shields are available for dirt and water protection in harsh environments. Manufactured in the USA. EU compatible units available |
| 環境 |
| TEMPERATURE: 0 to 50 C. Operational, -40 to +85-C Storage
HUMIDITY: 95% RH non-condensing operational SHOCK: 20 G any axis VIBRATION: 5 G 10 - 2000 Hz. ALTITUDE: -1000 to +50,000+ Feet Operational R. F.: FCC Part 15 Subpart 3 requires this product to be tested with a host. Evergreen manufactures units meeting MIL-STD-461C Part 2-RE-02. MTBF: 25,000 Hours Industrial 50,000 Hours Office Benign Per MIL-HDBK-2l7E |
| インターフェース |
| DTXX - S9P (Serial 9-Pin) DTXX - S9PPT (Serial 9-Pin with Power Xmfr) DTXX - S25P (Serial 25-Pin) DTXX - PS/2 DTXX - SUN DTXX - SGI DTXX - DEC DTXX - HIL |
DTXX ボタンコンフィギュレーション
|
| 特徴 |
| On the bottom of the unit, there is a 2-position slide
switch used to configure the order and function of the trackball buttons,
and an 8-position slide switch used to configure the operation and computer

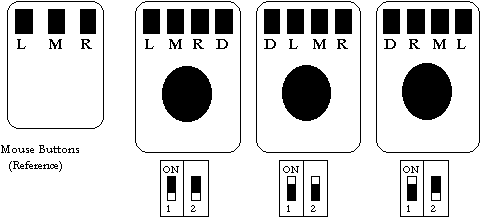

interface of the trackball. The buttons on the DTXX(A) are related to the buttons on a typical mouse as shown in the following figure. In order to facilitate 'right' or 'left' handed operation (or user preference) the order and function of the switches can be changed by setting the 2-position slide switch on the bottom of the trackball as shown above: Note that the DTXX(A) has a fourth button labeled 'D', which refers to the 'DRAG' button. When this button is pressed simultaneously with any of the other three function buttons (L,M,R), it will lock that function button 'down', until the function button is pressed again, releasing it. This feature is useful when capturing an object on the screen and 'Dragging' it to a new location, since holding a button down while rotating the ball is somewhat difficult |
