DTXL5
ディスクトップ 2" トラックボール
|
|
| 特徴 |
| The DTXL-5 and DTXL-5V series trackballs are direct replacements
for Silicon Graphics, SUN Microsystems, Digital Equipment Corp., Hewlett
Packard (including HP/HIL), PC Serial (9-Pin or 25-Pin), and PS/2 "Mice".
They are designed to provide the user with a rugged, industrial quality pointing
device with features to provide quick, precise cursor movement, convenient
"dragging" operations, and support for the hand. The DTXL-5 trackball has configuration switches for right/left handed operation, and (on serial interface units) selection of emulation mode (Microsoft 2-button, Logitech 3-button, plus many more), BAUD rate, and Dynamic Resolution. These configuration switches are user accessible through a window on the bottom of the case. The lower cost DTXL-5V series are fixed-configuration Variants of the standard DTXL-5 trackballs (no configuration switches). They have right-handed button configuration, fixed BAUD rate (on serial interface units), and active Dynamic Resolution. The interface and emulation mode must be specified at the time of order. Physical Size: L= 8.0", W= 4.0", H= 1.7" Weight: 0.8 lbs. |
| 仕様 |
| Emulates most popular mice - uses existing mouse driver
and mouse software. Interfaces to all popular workstations and computers. Buttons under the thumb and little finger provide convenient clicking and dragging operations that use the Left mouse button, while the Middle and Right mouse buttons are positioned across the top (with an additional "Lock" button in between for dragging operations that use the Middle or Right buttons). Click here (DTXL-5 Button Configuration) for a detailed explanation of the button operation, button configuration, and serial interface configurations available on the DTXL-5 units. All Metal Mechanicals and Diamond Hard Nitrited Steel Shafts with Precision Ball Bearings provide for rugged, smooth, long lasting operation. Optical Encoders provide fast, high resolution, reliable positioning data. (400 counts/revolution of ball) 2 Inch Diameter Hard Phenolic Resin Ball for smooth, durable operation and precise cursor positioning. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly. Gold-Plated Steel Spring-Contact Switches for high reliability and excellent tactile/audible feedback. Teflon Ball Shields are available for dirt and water protection in harsh environments. Manufactured in the USA. EU compatible units available |
| 環境 |
| TEMPERATURE: 0 to 50 C. Operational, -40 to +85-C Storage
HUMIDITY: 95% RH non-condensing operational SHOCK: 20 G any axis VIBRATION: 5 G 10 - 2000 Hz. ALTITUDE: -1000 to +50,000+ Feet Operational R. F.: FCC Part 15 Subpart 3 requires this product to be tested with a host. Evergreen manufactures units meeting MIL-STD-461C Part 2-RE-02. MTBF: 25,000 Hours Industrial 50,000 Hours Office Benign Per MIL-HDBK-2l7E Tempest units available on request |
| インターフェース |
| DTXL5 - S9P (Serial 9-Pin) DTXL5 - S25P (Serial 25-Pin) DTXL5 -SUN DTXL5 - SGI DTXL5 - DEC |
ボタン コンフィギュレーション
|
| 特徴 |

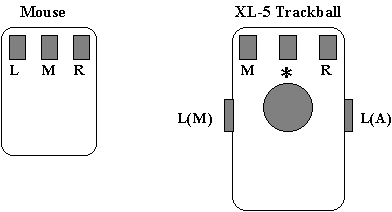

| In this button arrangement (right-handed operation), the
thumb operates button L(M), while the little finger operates button L(A).
Button L(M) has a MOMENTARY action (active when pressed, inactive when released).
Button L(A) has an ALTERNATE action (active when pressed and released once,
inactive when pressed and released a second time). Buttons M and R when pressed by themselves are MOMENTARY action, but if pressed simultaneously with the * button, they will remain active until they are pressed again by themselves. These button functions allow each of the three active buttons to be used for convenient "DRAG" operations, where an item on the screen is moved by holding down a key (to select the item) and moving the ball to re-position the item. By using the above button 'lock' actions the user no longer must physically hold down the key while moving the item around the screen, leaving the hand free to rotate the ball however desired. . |
