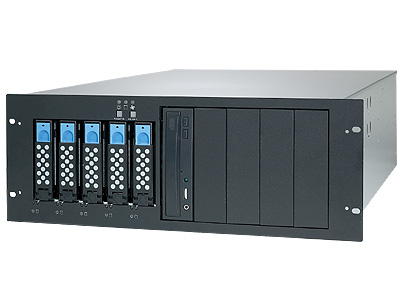

Model No
|
RS 4100
|
Dimensions
|
177.0mm(H) x 482.6mm(W) x 609.9mm(D); 6.968"(H)
x 19" (W) x 24"(D)
|

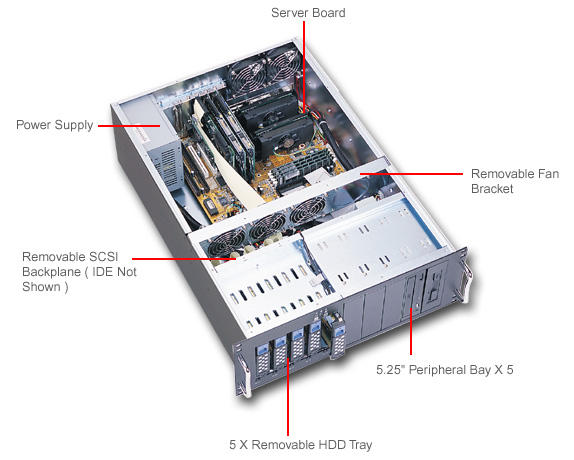

Server Board
|
One ATX or AXi Server Board; Up to 12"
x 13"
|
Peripheral Bays
|
Five 5.25" Bay, optional removable slim
CD-ROM/diskette drive bay
|
Backplane Module
|
Support Ultra160 SCSI RAID System
1.0" HDD 5 units
Each HDD is connected by SCA-2 Connector
SCSI Terminator on one backplane
|
Expansion slots
|
7 Expansion Slots
|
System Cooling
|
One Removable Fan Bracket for flexible solution
Six 80mm x 80mm system fan (4 installed, 2 optional)
|
Power Supply
|
One 300W power supply (Redundant power
supply available)
|
Front Panel LED Indicators
|
1. Power ON/OFF power switch
2. Reset Switch
3. Power ON LED (Green)
4. Lan LED (Green)
5. HDD status LED (Green)x5, HDD access LED (Yellow)x5
|
Environment
|
Ambient Temperature
Operating: 5°C to 35 °C
Non operating/Storage40°C to 70°C
Relative humidity
Non-operating---95% @ 30°C non-condensing
|
EMC
|
Designed to Meet---FCC Class A
CE Marked
|
Safety
|
UL(File# E135676)and CUL
TUV(Certificate #2072640)
|
