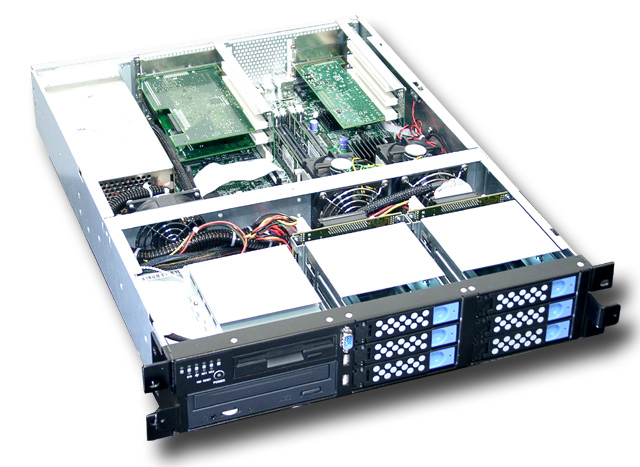

RS 2600 ƒ‰ƒbƒNƒ}ƒEƒ“ƒgƒT[ƒo[ƒP[ƒX
|
Designed for the Intel SCB2 motherboard (can be used with other motherboard
models) Hot swappable SCSI HDD backplane supports up to 6 devices with Ultra160 data transfer rate (optional Ultra320 available) 350W power supply (additional P/S options available) One 5.25" drive bay One 3.5" drive bay Three long life ball bearing fans 2U formfactor (3.5" x 19" x 24") rack configuration |
|
Model No |
RS 2600 24" Rack Mount |
Dimensions |
88.2mm(H)x482.6mm(W)x409.6mm(D);3.50"(H)x19"(W)x24"(D) |
Server Board |
One ATX Server Board; Up to 12"x13" |
Peripheral Bays |
One 5.25" Bay, and one 3.5" Bay |
Expansion slots |
Two 64 bit/66 MHz PCI riser cards included |
Thermal solution |
Special-design heat sink with Blower provided
hi-efficiency thermal solution |
Power Supply |
One Standard 350W PFC power supply |
Front Panel LED Indicators |
1.Power ON/OFF power switch 2.Reset switch 3.Power On LED (Green) 4.HDD status LEDx6(Green) 5.LAN LEDx2(Green) 6. SYS failed LED |
Environment |
Ambient Temperature Operating: 5‹C to 35‹C Non-operating/Storage:-40‹C to 70‹C Relative Humidity Non-operating-95%@30‹C non-condensing |
|
|
09-1732-01 | RS 2600 24" Chassis |
08-6036-03A | Rack Mount Slide Set 24" |
