Model No
|

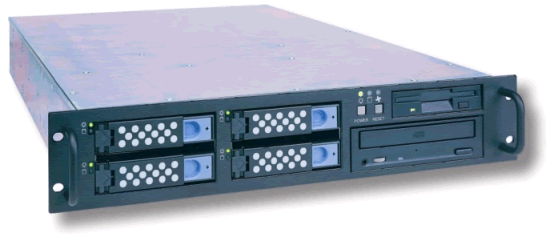

RS2100 (SCSI Model)
|
Dimensions
|
88.1mm(H)x482.6mm(W)x609.9mm(D);3.468"(H)x19"(W)x24"(D)
|

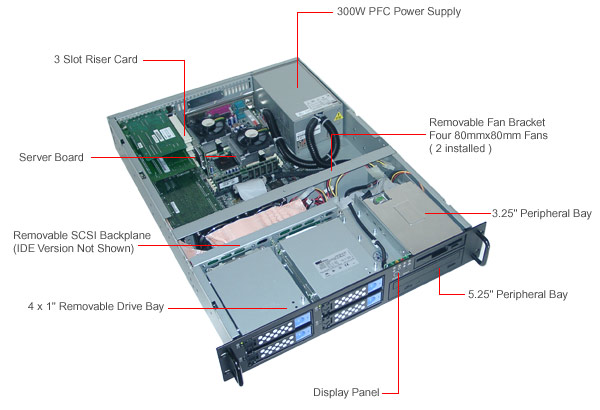

Server Board
|
One ATX or Axi Server Board; Up to 12"x13"
|
Peripheral Bays
|
One 3.5" bay
One 5.25" Bay optional removable slim CD-ROM/diskette drive bay
|
Backplane Module
|
Support Ultra160 SCSI RAID System
1.0"HDD 4 units
Each HDD is connected by SCA-2 Connector
SCSI Terminator included on backplane
IDE version available
|
Expansion slots
|
One 3 slot 32bit PCI on riser card (short,long,3
slot 64bit PCI riser card optional)
|
Thermal solution
|
One Removable Fan Bracket for Flexible Solution
Four System Fan(80mmx80mm) 2 installed, 2 optional
Optional Fan Fail Detector and Alarm Board
|
Power Supply
|
One Standard ATX 300W power supply (PFC power
supply or N+1 Redundant Power Supply Available)
|
Front Panel LED Indicators
|
1. Power ON/OFF power switch
2.Reset switch
3.Power ON LED(Green)
4.LAN LED(Green) )
5.HDD status LED(Green)x4, HDD access LED(Yellow)x4
6.Fan Fail warning LED(Red) if motherboard supports
|
Environment
|
Ambient Temperature
Operating:5°C to 35°C
Non-operating/Storage:-40°C to 70°C
Relative humidity
Non-operating---95%@30°C non-condensing
|
EMC
|
Designed to meet---FCC Class A
CE Marked
|
Safety
|
UL(File#E135676) and CUL
TUV(Certificate# 2072640)
|
