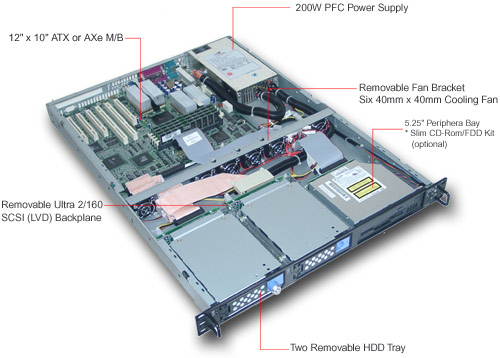

RS 1100 ラックマウントケース
・Supports up to 2 devices hot swappable SCSI or removable ATA backplanes available
・250W Power supply (additional P/S options available)
・Back panel options for the most popular 1U server boards
・Hot swappable SCSI HDD backplane supports up to 2 devices with Ultra160 data transfer rate (optional Ultra320 available)
・Removable ATA HDD backplane supports up to 2 devices with ATA100 data transfer rate
・One PCI slot available
・5 1/4" Peripheral Bay x 1 (Optional CD/FDD Combo Kit)
・Six long life ball bearing fans
・1U formfactor 19"(W)x1.721"(H)x24"(D) EIA Standard 19" Rack





Model No
 RS 1100 (SCSI, Fixed & Removable IDE Versions Available)
Dimensions
 43.7mm(H)x482.6mm(W)x609.9mm(D); 1.721"(H)x19"(W)x24"(D)
Server Board
 One Server Board up to 12 x 13"; Optional Back panels for all major Server Boards
Peripheral Bays
 One Standard 5.25" Bay
optional removable slim CD-ROM/diskette drive bay
Backplane Module
 Support Ultra160 SCSI or Removable IDE
1.0" HDD 2 units
Each HDD is connected by SCA-2 Connector
SCSI Terminator on backplane
IDE version available
Expansion slots
 One 32bit PCI on riser card
System Cooling
 One Removable Fan Bracket for flexible solution
Six system fans
Power Supply
 One Standard ATX 250W power supply (additional P/S options available)

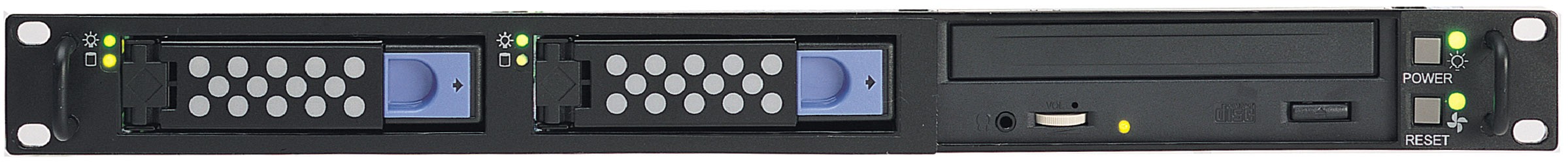

Front Panel LED Indicators
 1. Power ON/OFF power switch
2. Reset switch
3. Power ON LED (Green)
4. LAN LED (Green)
5. HDD status LED (Green)x3, HDD access LED (Yellow)x3
6. Fan Fail Warning LED (Red) (if motherboard supports)
Environment
 Ambient Temperature
Operating: 5°C to 35°C
Non-operating/Storage: -40°C to 70°C

Relative humidity
Non-operating ---- 95% @ 30°C non-condensing
EMC
 Designed to Meet -------- FCC Class A
CE Marked
Safety
 UL CUL
TUV

品番＆オプション
詳細
09-1722-005 RS 1100 Fixed
09-1722-007 RS 1100 Fixed w/o PSU
09-1723-003 RS 1100 Removable ATA
09-1726-001 RS 1100 SCSI w/PFC PSU
09-2533-01
 5.25" Slim CD-ROM/FDD Mounting Kit
08-6036-01A
 Rack Mount Slide Rail Set 24"
09-2539-01
 Back panel Accessory Kit for Standard ATX, Motherboard MSI6315, Iwill DVD266n
09-2539-02
 Back panel Accessory Kit for Sun AXe Server Board
09-2539-03
 Back panel Accessory Kit for ASUS CUR-DLS Motherboard
09-2539-04
 Back panel Accessory Kit for Nexcom 6320A
09-2539-05
 Back panel Accessory Kit for SuperMicro 370DER, 370DLR Motherboard
09-2539-06
 Back panel Accessory Kit for Tyan S2505 Motherboard
09-2539-07
 Back panel Accessory Kit for Bird Nest Motherboard
09-2539-08
 Back panel Accessory Kit for Gigabyte GA6-VXDR7
09-2539-09
 Back panel Accessory Kit for Intel Bonham S815EBM1 Server Board
