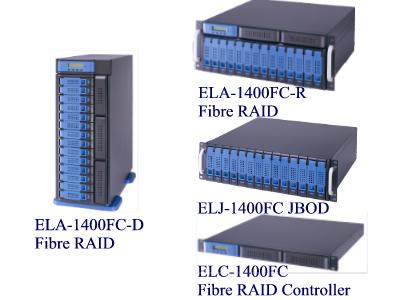

| ELA-1400FC-D | ELA-1400FC-R |
ELJ-1400FC |
ELC-1400FC |
|
| RAID Controller | EonRAID 5200, support optional redundant Raid controller | EonRAID 5200, support optional redundant Raid controller |
EonRAID 5200, support optional redundant Raid controller |
|
| RAID レベル | 0, 1, 0+1, 3, 5, 10, 30, 50, NRAID, JBOD | 0, 1, 0+1, 3, 5, 10, 30, 50, NRAID, JBOD |
0, 1, 0+1, 3, 5, 10, 30, 50, NRAID, JBOD |
|
| キャッシュ サポート |
Up to 1GB maximum cache size on single SDRAM DIMM socket with ECC support per controller board | Up to 1GB maximum cache size on single SDRAM DIMM socket with
ECC support per controller board |
|
Up to 1GB maximum cache size on single SDRAM DIMM socket with
ECC support per controller board |
LUN サポート |
Multiple host support and host-LUN mapping for multiple
server environments, up to 8 logical drives of variable RAID levels |
Multiple host support and host-LUN mapping for multiple
server environments, up to 8 logical drives of variable RAID levels |
Multiple host support and host-LUN mapping for multiple
server environments, up to 8 logical drives of variable RAID levels |
|
| オンライン Raid 拡張機能 |
Online RAID expansion, add drive or replace drives with drive
of larger capacity |
Online RAID expansion, add drive or replace drives with drive
of larger capacity |
Online RAID expansion, add drive or replace drives with drive
of larger capacity |
|
| リダンダント コントローラ |
Support optional active/active redundant dual controllers |
Support optional active/active redundant dual controllers |
Support optional active/active redundant dual controllers |
|
| 障害時機能 モニター＆ リカバリ |
Auto rebuilding, background rebuilding, hot spare drive
operation, disk hot swapping, memory parity check |
Auto rebuilding, background rebuilding, hot spare drive
operation, disk hot swapping, memory parity check |
Auto rebuilding, background rebuilding, hot spare drive
operation, disk hot swapping, memory parity check |
|
| ホスト インターフェース |
Up to two Fibre Channel interfaces (cooper DB-9 connectors), 100MB/s each, 200MB/s total | Up to two Fibre Channel interfaces (cooper DB-9 connectors),
100MB/s each, 200MB/s total |
Up to two Fibre Channel interfaces (cooper DB-9 connectors),
100MB/s each, 200MB/s total |
Up to two Fibre Channel interfaces (cooper DB-9 connectors),
100MB/s each, 200MB/s total |
| ディスクドライブインターフェース |
Dual, independent Fibre Channel Interfaces (cooper DB-9
connectors), 100MB/s each. With optional daughter board support up to four Fibre Channel interface. |
Dual, independent Fibre Channel Interfaces (cooper DB-9
connectors), 100MB/s each. With optional daughter board support up to four Fibre Channel interface. |
Dual, independent Fibre Channel Interfaces (cooper DB-9
connectors), 100MB/s each. |
Dual, independent Fibre Channel Interfaces (cooper DB-9
connectors), 100MB/s each. With optional daughter board support up to four Fibre Channel interface. |
| FCAL数 ディスクドライブ |
40Pin SCA-2 HDD x 14 bays, 1” HDD supported | 40Pin SCA-2 HDD x 14 bays, 1” HDD supported |
40Pin SCA-2 HDD x 14 bays, 1” HDD supported |
|
| モニタリング システム |
I2C interface (default, DB-9 connector) | I2C interface (default, DB-9 connector) |
I2C interface (default, DB-9 connector) |
I2C interface (default, DB-9 connector) |
| |
SES (SCSI Enclosure services) Compliant enclosure Monitoring (optional) | SES (SCSI Enclosure services) Compliant enclosure Monitoring
(optional) |
SES (SCSI Enclosure services) Compliant enclosure Monitoring
(optional) |
|
| 冷却システム | 4 x Blower Module | 4 x Blower Module |
2 x Blower Module |
2 x Blower Module |
| 電源システム | 2+1 Power Module, 600w+300w (3 bays) Input: 90〜230 VAC; 50〜60HZ Output: +5V 60A, +12V 30A |
2+1 Power Module, 600w+300w (3 bays) Input: 90〜230 VAC; 50〜60HZ Output: +5V 60A, +12V 30A |
2+1 Power Module, 600w+300w (3 bays) Input: 90〜230 VAC; 50〜60HZ Output: +5V 60A, +12V 30A |
Power supply from ELJ-1400FC |
| リダンダント ホットスワップ |
Disk Drives, Cooling Modules, Up to two FCAL loop modules, Power Supply modules, Raid Controllers |
Disk Drives, Cooling Modules, Up to two FCAL loop modules, Power Supply modules, Raid Controllers |
Disk Drives, Cooling Modules, Up to two FCAL loop modules, Power Supply modules. |
Cooling Modules, Raid Controllers |
| 障害時 注意システム |
Fault LED indicators Audible alarms Monitoring system notification |
Fault LED indicators Audible alarms Monitoring system notification |
Fault LED indicators Audible alarms Monitoring system notification |
Fault LED indicators Audible alarms Monitoring system notification |
| 寸法 | H 527mm W 241mm D 483mm |
H 4U W 446mm D 483mm |
H 3U W 446mm D 483mm |
H 1U W 446mm D 483mm |
| 動作温度 | Temperature: 5。C〜 40。C Relative Humidity: 10% 〜 90% (none condensing) |
Temperature: 5。C〜 40。C Relative Humidity: 10% 〜 90% (none condensing) |
Temperature: 5。C〜 40。C Relative Humidity: 10% 〜 90% (none condensing) |
Temperature: 5。C〜 40。C Relative Humidity: 10% 〜 90% (none condensing) |
|
|
|
| Sun | Solaris/x86 2.4以上 |
| IBM | AIX 4.1以上 |
| HP | HP-UX 10.10以上 |
| SGI | IRIX 6.2以上 |
| Compaq | Digital UNIX 4.0以上 |
| Microsoft | Windows NT 3.51以上/Windows2000 |
| Linux | Linux |
| その他 | お問合せください。 |
