・NS Geode 300MHz processor ・FAN less ・External Power ・Smart Card support ・Wireless LAN support ・DOM / CF support ・WinCE3.0 or CE.NET ・15”TFT LCD Panel |

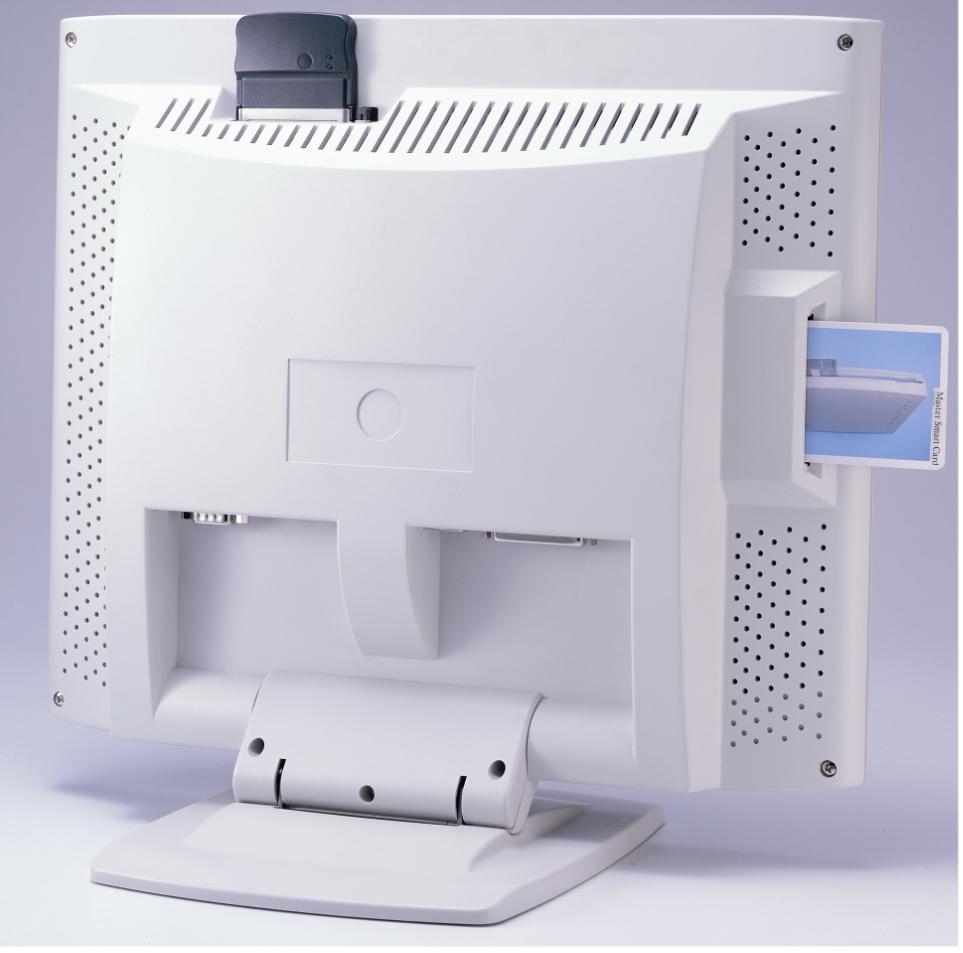

TC-805 シリーズ
Thin Client
|
|
|
・NS Geode 300MHz processor ・FAN less ・External Power ・Smart Card support ・Wireless LAN support ・DOM / CF support ・WinCE3.0 or CE.NET ・15”TFT LCD Panel |
| TC-805N |
TC-805NE |
|
| LCD Display |
||
| Pannel Size & Type |
15" TFT Active Panel |
15" TFT Active Panel |
| OSD Control |
Auto-adjust Monitor-control: H-position,V-position,Phase, Clock, Reset OSD-control: OSD-H-position, OSD-V-position Misc-control: Language, Information (firmware version) Graphic-Control: Contrast, Brightness,Sharpness, Color, R, G & B Adj. |
Auto-adjust Monitor-control: H-position,V-position,Phase, Clock, Reset OSD-control: OSD-H-position, OSD-V-position Misc-control: Language, Information (firmware version) Graphic-Control: Contrast, Brightness,Sharpness, Color, R, G & B Adj. |
| PROCESSOR |
||
| CPU |
NS Geode 300Mhz with 16 KB unified Cache |
NS Geode 300Mhz with 16 KB unified Cache |
| MEMORY |
||
| RAM |
One SDRAM 144pin SODIMM 64NB up to 512MB |
One SDRAM 144pin SODIMM 64NB up to 512MB |
| ROM |
One Disk on chip flash ROM 16MB or above |
One Disk on chip flash ROM 16MB or above |
| STANDARD INTERFACE |
||
| VGA |
Up to 1024*768, 16bit high color |
Up to 1024*768, 16bit high color |
| LAN |
RJ45, 10/100BaseT |
RJ45, 10/100BaseT |
| PCMCIA |
One IEEE802.11b Wireless LAN (option) |
One IEEE802.11b Wireless LAN (option) |
| Smart Card |
One Smart Card Reader (Option) |
One Smart Card Reader (Option) |
| Keyboard & Mouse |
PS2 Type |
PS2 Type |
| Serial |
One RS232, 9Pin DSUB COM1 |
One RS232, 9Pin DSUB COM1 |
| Parallel |
25Pin DSUB |
25Pin DSUB |
| USB Port |
2 USB Ports |
2 USB Ports |
| Audio Line Out |
2 x 1 Watts speakers with Amplifier |
2 x 1 Watts speakers with Amplifier |
| Physical/Mechanical
|
||
| Dimension |
331 mm(H)x 362 mm(W)x 175 mm(D) |
331 mm(H)x 362 mm(W)x 175 mm(D) |
| Client Side Software
|
||
| OS System |
Microsoft Windows CE 3.0/CE.NET |
Microsoft Windows CE 3.0/CE.NET |
| Terminals Emulations |
Non |
IBM: AIXterm, 3270, 5250 Digital: VT42, VT100, VT220, VT320, VT420, VT520, VT525 ANSI: ANSI-BBS, SCO-ANSI, AT386 Additional: WYSE(50/60), Data General D-412, Televido(TVI925/950) |
| Local Browser |
IE4.0/IE5.5 |
IE4.0/IE5.5 |
| Connectivity |
Remote Desktop Protocol (RDP) Citrix Independent Computing Architecture (ICA) |
Remote Desktop Protocol (RDP) Citrix Independent Computing Architecture (ICA) |
| SNMP |
Local SNMP support |
Local SNMP support |
| Server Side Software |
||
| OS System Support |
Microsoft Windows 2000 server Microsoft Windows NT Terminal Server Edition Citrix MetaFrame Citrix Winframe. |
Microsoft Windows 2000 server Microsoft Windows NT Terminal Server Edition Citrix MetaFrame Citrix Winframe. |
| Management Tool (Free Chardge) |
AXUS WinClient Remote Manager Wake on LAN |
AXUS WinClient Remote Manager Wake on LAN |
