・VIA Eden 533MHz processor ・FAN less ・32bit true color ・With Smart Card function ・With Wireless LAN function ・With DOM / CF storage solution |

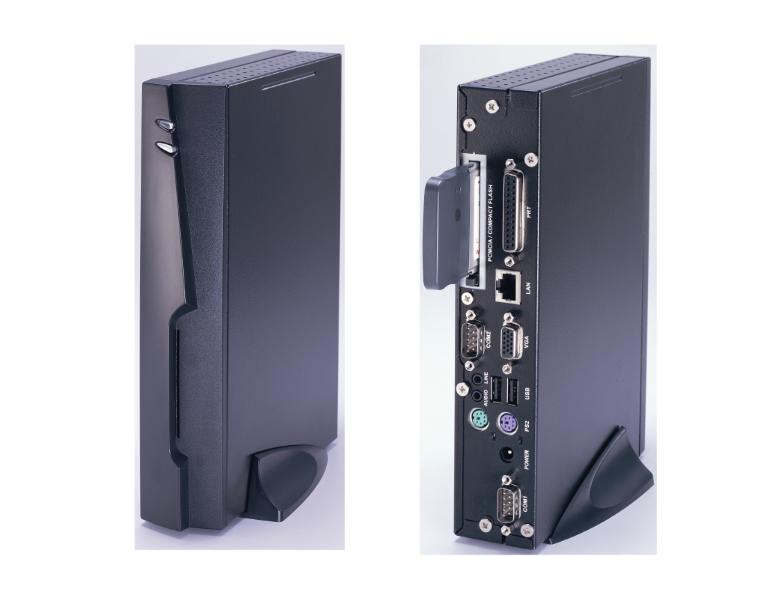

TC-600 シリーズ
Thin Client
|
|
・VIA Eden 533MHz processor ・FAN less ・32bit true color ・With Smart Card function ・With Wireless LAN function ・With DOM / CF storage solution |
| TC-600V |
TC-600VE |
|
| PROCESSOR |
||
| CPU |
VIA Eden 533Mhz |
VIA Eden 533Mhz |
| MEMORY |
||
| RAM |
One SDRAM 144pin DIMM 64MB up to 512MB |
One SDRAM 144pin DIMM 64MB up to 512MB |
| ROM |
One Disk on Memory Module16MB or above |
One Disk on Memory Module16MB or above |
| STANDARD INTERFACE |
||
| VGA |
Up to 1024*768, 32bit ture color, VESA monitor
support with DDC |
Up to 1024*768, 32bit ture color, VESA monitor
support with DDC |
| LAN |
RJ45, 10/100BaseT |
RJ45, 10/100BaseT |
| PCMCIA |
One IEEE802.11b Wireless LAN (Option) |
One IEEE802.11b Wireless LAN (option) |
| Smart Card |
One Smart Card Reader (Option) |
One Smart Card Reader (Option) |
| Keyboard & Mouse |
PS2 Type |
PS2 Type |
| Serial |
Two RS232, 9Pin DSUB COM1, COM2 |
Two RS232, 9Pin DSUB COM1, COM2 |
| Parallel |
25Pin DSUB |
25Pin DSUB |
| USB Port |
Two USB Ports |
Two USB Ports |
| Audio Line Out |
1/8inches mini, full 18bit stereo, 44KHz sample
rate |
1/8inches mini, full 18bit stereo, 44KHz sample
rate |
| Physical/Mechanical
|
||
| Dimension |
220 mm(H)x 45 mm(W)x 155 mm(D) |
220 mm(H)x 45 mm(W)x 155 mm(D) |
| Client Side Software
|
||
| OS System |
Microsoft Windows CE.NET |
Microsoft Windows CE.NET |
| Terminals Emulations |
Non |
IBM: AIXterm, 3270, 5250 Digital: VT42, VT100, VT220, VT320, VT420, VT520, VT525 ANSI: ANSI-BBS, SCO-ANSI, AT386 Additional: WYSE(50/60), Data General D-412, Televido(TVI925/950) |
| Local Browser |
IE5.5 |
IE5.5 |
| Connectivity |
Remote Desktop Protocol (RDP) Citrix Independent Computing Architecture (ICA) |
Remote Desktop Protocol (RDP) Citrix Independent Computing Architecture (ICA) |
| SNMP |
Local SNMP support |
Local SNMP support |
| Server Side Software |
||
| OS System Support |
Microsoft Windows 2000 server Microsoft Windows NT Terminal Server Edition Citrix MetaFrame Citrix Winframe |
Microsoft Windows 2000 server Microsoft Windows NT Terminal Server Edition Citrix MetaFrame Citrix Winframe |
| Management Tool (Free Chardge) |
AXUS WinClient Remote Manager Wake on LAN |
AXUS WinClient Remote Manager Wake on LAN |
